- The adjustable handle slides easily into 5 different positions.
- 360 degree rotating handle socket gives flexibility in difficult pumping locations.

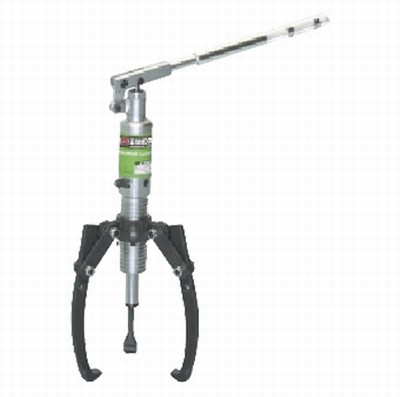

- The hydraulic pump and puller body are self contained and feature a spring loaded centering cone.
- Units come with integral safety relief valve systems.
- Heat-treated, chrome-plated cylinder for extended durability and corrosion prevention.
- All units use heat-treated forged alloy steel cross bolts.
- Spring return hydraulic cylinder allows for rapid retraction of the cylinder rod upon completion of the pull.
- Jaws are plated with maganous-phosphate to prevent rust and corrosion.
- 2/3-way combination puller head for 3-jaw puller, plus the 2-jaw option when space is limited.
- Multiple cross bolt mountings for additional set up versatility.
- ZPM-20 & ZPM-30 have 2 state stroke design. First stage is for quick connect, while second stage provides high hydraulic output for pulling.
- Reach 4.06" to 10.60"
- Spread 4.72 to 14.76"
- Stroke 3.35"
- Pump tip� 2.36�"�� 1.10"��� 4.65"
- Jaw tip�� .55�� .39�� 1.14��� 2"
|
